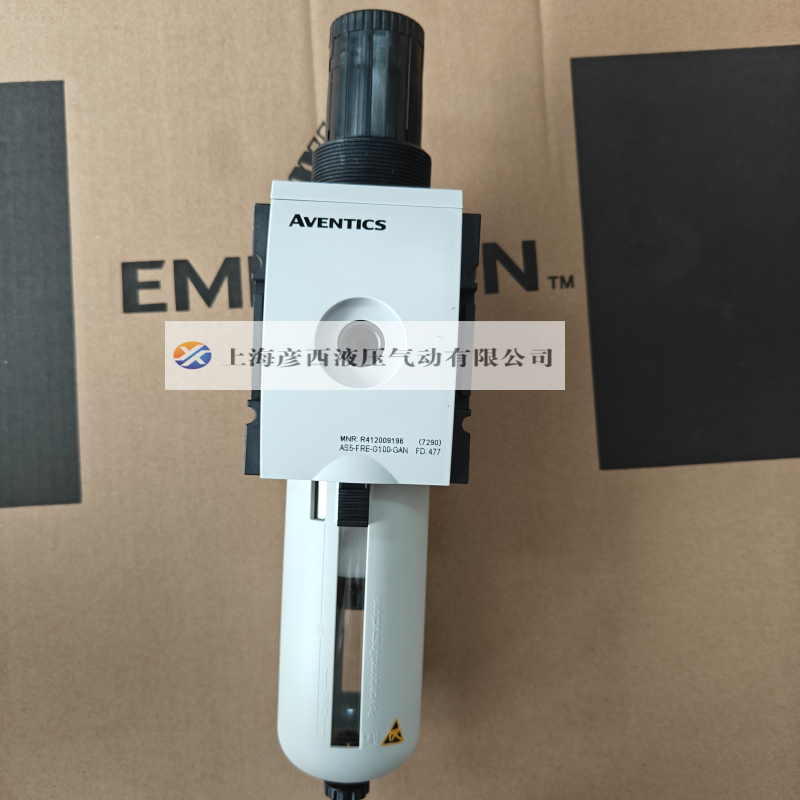

AVENTICS 过滤器-调压阀 R412009196

产品描述

AS5-FRE-G100-GAN-100-PBP-HO-05.00

技术规格：

组成部分过滤器-调压阀

气杯PC材质的容器，配有PA材质的保护篮

接口G 1

额定流量Qn14000 l/min

过滤器气孔直径5 µm

清除冷凝物半自动，失压开启

压力表不带压力表

最小运行压力1.5 bar

最大运行压力16 bar

最低环境温度-10 °C

最高环境温度50 °C

压力调节范围 min.0.5 bar

压力调节范围 max.10 bar

封闭方式，封闭类型用于挂锁

结构特点一个整体的

结构特点可以组装成块

压力输送单的

安装位置垂直

调节器型号隔膜式调压阀

调整功能带二次排气

最大值. 自通风耗用量1.5 l/min

滤清器滤芯可替换

过滤器的集水杯容积87 cm³

根据ISO 8573-1:2010 标准可达到的最大压缩空气等级6 : 7 : -

介质压缩空气, 中性气体

特点

该模块化多功能系列产品可以融合各种功能

紧凑的尺寸节省了空间

减少能耗

质量轻

易于使用的设计

专用的安全组件，可靠又安全

简化装配，减少维护工作量

R412009100 AS5-RGS-G034-GAN-010

R412009101 AS5-RGS-G034-GAU-010 INCL. R412004419

R412009102 AS5-RGS-G034-GAN-020

R412009103 AS5-RGS-G034-GAU-020 INCL. R412004420

R412009104 AS5-RGS-G034-GAN-040

R412009105 AS5-RGS-G034-GAU-040 INCL. R412004422

R412009106 AS5-RGS-G034-GAN-080

R412009107 AS5-RGS-G034-GAU-080 INCL. R412004423

R412009108 AS5-RGS-G034-GAN-100

R412009109 AS5-RGS-G034-GAU-100 INCL. R412004424

R412009110 AS5-RGS-G034-GAN-160

R412009111 AS5-RGS-G034-GAU-160 INCL. R412004424

R412009112 AS5-RGS-G100-GAN-010

R412009113 AS5-RGS-G100-GAU-010 INCL. R412004419

R412009114 AS5-RGS-G100-GAN-020

R412009115 AS5-RGS-G100-GAU-020 INCL. R412004420

R412009116 AS5-RGS-G100-GAN-040

R412009117 AS5-RGS-G100-GAU-040 INCL. R412004422

R412009118 AS5-RGS-G100-GAN-080

R412009119 AS5-RGS-G100-GAU-080 INCL. R412004423

R412009120 AS5-RGS-G100-GAN-100

R412009121 AS5-RGS-G100-GAU-100 INCL. R412004424

R412009122 AS5-RGS-G100-GAN-160

R412009123 AS5-RGS-G100-GAU-160 INCL. R412004424

R412009158 AS5-RGS-G100-GAN-040-E11

R412009175 AS5-FRE-G034-GAN-080-PBP-HO-05.00

R412009176 AS5-FRE-G034-GAN-080-PBP-AO-05.00

R412009177 AS5-FRE-G034-GAN-080-PBP-AC-05.00

R412009181 AS5-FRE-G034-GAN-080-SSS-HO-05.00

R412009182 AS5-FRE-G034-GAN-080-SSS-AO-05.00

R412009183 AS5-FRE-G034-GAN-080-SSS-AC-05.00

R412009184 AS5-FRE-G100-GAN-080-PBP-HO-05.00

R412009185 AS5-FRE-G100-GAN-080-PBP-AO-05.00

R412009186 AS5-FRE-G100-GAN-080-PBP-AC-05.00

R412009188 AS5-FRE-G034-GAN-080-SSS-HO-25.00

R412009189 AS5-FRE-G100-GAN-080-SSS-HO-25.00

R412009190 AS5-FRE-G100-GAN-080-SSS-HO-05.00

R412009191 AS5-FRE-G100-GAN-080-SSS-AO-05.00

R412009192 AS5-FRE-G100-GAN-080-SSS-AC-05.00

R412009193 AS5-FRE-G034-GAN-100-PBP-HO-05.00

R412009194 AS5-FRE-G034-GAN-100-PBP-AO-05.00

R412009195 AS5-FRE-G034-GAN-100-PBP-AC-05.00

R412009196 AS5-FRE-G100-GAN-100-PBP-HO-05.00

R412009197 AS5-FRE-G100-GAN-100-PBP-AO-05.00

R412009198 AS5-FRE-G100-GAN-100-PBP-AC-05.00

R412009200 AS5-FRE-G034-GAU-080-PBP-HO-05.00

R412009201 AS5-FRE-G034-GAU-080-PBP-AO-05.00

R412009202 AS5-FRE-G034-GAU-080-PBP-AC-05.00

R412009206 AS5-FRE-G034-GAU-080-SSS-HO-05.00

R412009207 AS5-FRE-G034-GAU-080-SSS-AO-05.00

R412009208 AS5-FRE-G034-GAU-080-SSS-AC-05.00

R412009209 AS5-FRE-G100-GAU-080-PBP-HO-05.00

R412009210 AS5-FRE-G100-GAU-080-PBP-AO-05.00

R412009211 AS5-FRE-G100-GAU-080-PBP-AC-05.00

R412009215 AS5-FRE-G100-GAU-080-SSS-HO-05.00

R412009216 AS5-FRE-G100-GAU-080-SSS-AO-05.00

R412009217 AS5-FRE-G100-GAU-080-SSS-AC-05.00

R412009218 AS5-FRE-G034-GAN-100-PBP-HO-40.00

R412009219 AS5-FRE-G034-GAN-100-PBP-AO-40.00

R412009220 AS5-FRE-G034-GAN-100-PBP-AC-40.00

R412009221 AS5-FRE-G100-GAN-100-PBP-HO-40.00

R412009222 AS5-FRE-G100-GAN-100-PBP-AO-40.00

R412009223 AS5-FRE-G100-GAN-100-PBP-AC-40.00

R412009225 AS5-LBS-G034-PBP-LA

R412009226 AS5-LBS-G034-PBP-MN

R412009229 AS5-LBS-G034-SSS-LA

R412009231 AS5-LBS-G100-PBP-LA

R412009232 AS5-LBS-G100-PBP-MN

R412009235 AS5-LBS-G100-SSS-LA

R412009250 AS5-DIS-G034-NC3

R412009251 AS5-DIS-G100-NC3

R412009252 AS5-DIN-G034

R412009253 AS5-DIN-G100

R412009258 AS5-SOV-G034-PVC-CNOMO

R412009259 AS5-SOV-G100-PVC-CNOMO

R412009260 AS5-BAV-G034-MAN

R412009261 AS5-BAV-G100-MAN

R412009262 AS5-SOV-G034-PNE

R412009263 AS5-SOV-G100-PNE

R412009264 AS5-SOV-G034-PVN-DO16

R412009265 AS5-SOV-G034-024

R412009266 AS5-SOV-G034-110

R412009267 AS5-SOV-G034-230

R412009268 AS5-SOV-G100-PVN-DO16

R412009269 AS5-SOV-G100-024

R412009270 AS5-SOV-G100-110

R412009271 AS5-SOV-G100-230

R412009272 AS5-SSV-G034-FIA

R412009273 AS5-SSV-G100-FIA

R412009275 AS5-SSV-G100-FIS-INT

R412009276 AS5-SSU-G034-PNE

R412009277 AS5-SSU-G034-PVN-DO16

R412009278 AS5-SSU-G034-024

R412009279 AS5-SSU-G034-110

R412009280 AS5-SSU-G034-230

R412009281 AS5-SSU-G100-PNE

R412009282 AS5-SSU-G100-PVN-DO16

R412009283 AS5-SSU-G100-024

R412009284 AS5-SSU-G100-110

R412009285 AS5-SSU-G100-230

R412009286 AS5-SSU-G034-PVC-CNOMO

R412009287 AS5-SSU-G100-PVC-

R412009289 AS5-SSU-G100-3/2-PNE-FIS-INT

R412009298 AS5-ACD-G034-GAU-080-PBP-HO-05.00-PBP-LA

R412009299 AS5-ACD-G034-GAU-080-PBP-AO-05.00-PBP-LA

R412009300 AS5-ACD-G034-GAU-080-PBP-AC-05.00-PBP-LA

R412009301 AS5-SOV-G100-2/2-024-FORMC

R412009307 AS5-ACD-G100-GAU-080-PBP-HO-05.00-PBP-LA

R412009308 AS5-ACD-G100-GAU-080-PBP-AO-05.00-PBP-LA

R412009309 AS5-ACD-G100-GAU-080-PBP-AC-05.00-PBP-LA

R412009311 AS5-SSV-G034-FIA-PNE

R412009312 AS5-SSV-G100-FIA-PNE

R412009318 AS5-ACT-G034-GAU-080-PBP-HO-05.00-PBP-LA

R412009319 AS5-ACT-G034-GAU-080-PBP-AO-05.00-PBP-LA

R412009320 AS5-ACT-G034-GAU-080-PBP-AC-05.00-PBP-LA

R412009327 AS5-ACT-G100-GAU-080-PBP-HO-05.00-PBP-LA

R412009328 AS5-ACT-G100-GAU-080-PBP-AO-05.00-PBP-LA

R412009329 AS5-ACT-G100-GAU-080-PBP-AC-05.00-PBP-LA

R412009338 AS5-CLS-X000-PBP-HO

R412009339 AS5-CLS-X000-PBP-AO

R412009340 AS5-CLS-X000-PBP-AC

R412009344 AS5-CLS-X000-SSS-HO

R412009345 AS5-CLS-X000-SSS-AO

R412009346 AS5-CLS-X000-SSS-AC

R412009347 AS5-CLA-X000-PBP-NO

R412009349 AS5-CLA-X000-SSN-NON

R412009351 AS5-CBS-X000-PBP-MN

R412009352 AS5-CBS-X000-PBP-LA

R412009358 AS5-CBS-X000-SSS-LA
